Stacksync File System

Stacksync File System is the platform capability for file ingestion in workflows. Files sent to workflow triggers are stored by Stacksync and represented as reusable file_id references. This removes raw file payload handling from downstream execution and provides a consistent integration model across workflow modules.

1. Processing FlowCopy Anchor Link

When a POST Trigger webhook request includes file input, Stacksync automatically:

1. Ingests the incoming file payload.
2. Stores the file in Stacksync-managed storage.
3. Replaces file content with a Stacksync-managed file object containing the file_id reference.
4. Passes the updated payload to downstream workflow steps.

Supports both multipart file uploads and JSON payloads with embedded base64 file content.

2. UsageCopy Anchor Link

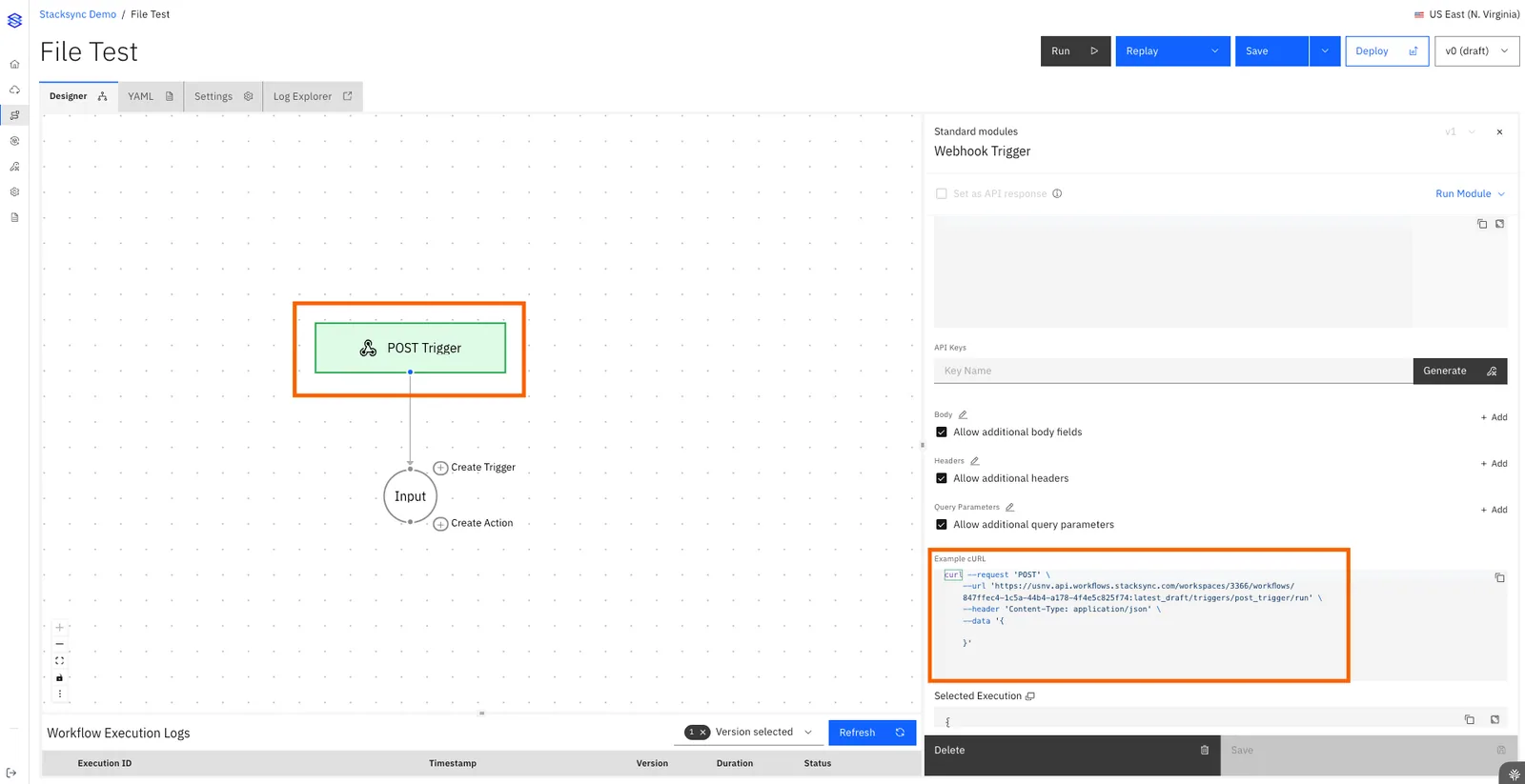

Get the POST Trigger URL from your workflow trigger configuration:

https://.api.workflows.stacksync.com/workspaces/<workspace_id>/workflows/<workflow_id>:latest_draft/triggers/post_trigger/run

Format 1: Multipart UploadCopy Anchor Link

HTTPS Request:

curl --request 'POST' \
  --url 'https://<region>.api.workflows.stacksync.com/workspaces/<workspace_ID>/workflows/<workflow_ID>:latest_draft/triggers/post_trigger/run' \
  --form 'file=@/absolute/path/to/invoice.pdf;type=application/pdf'

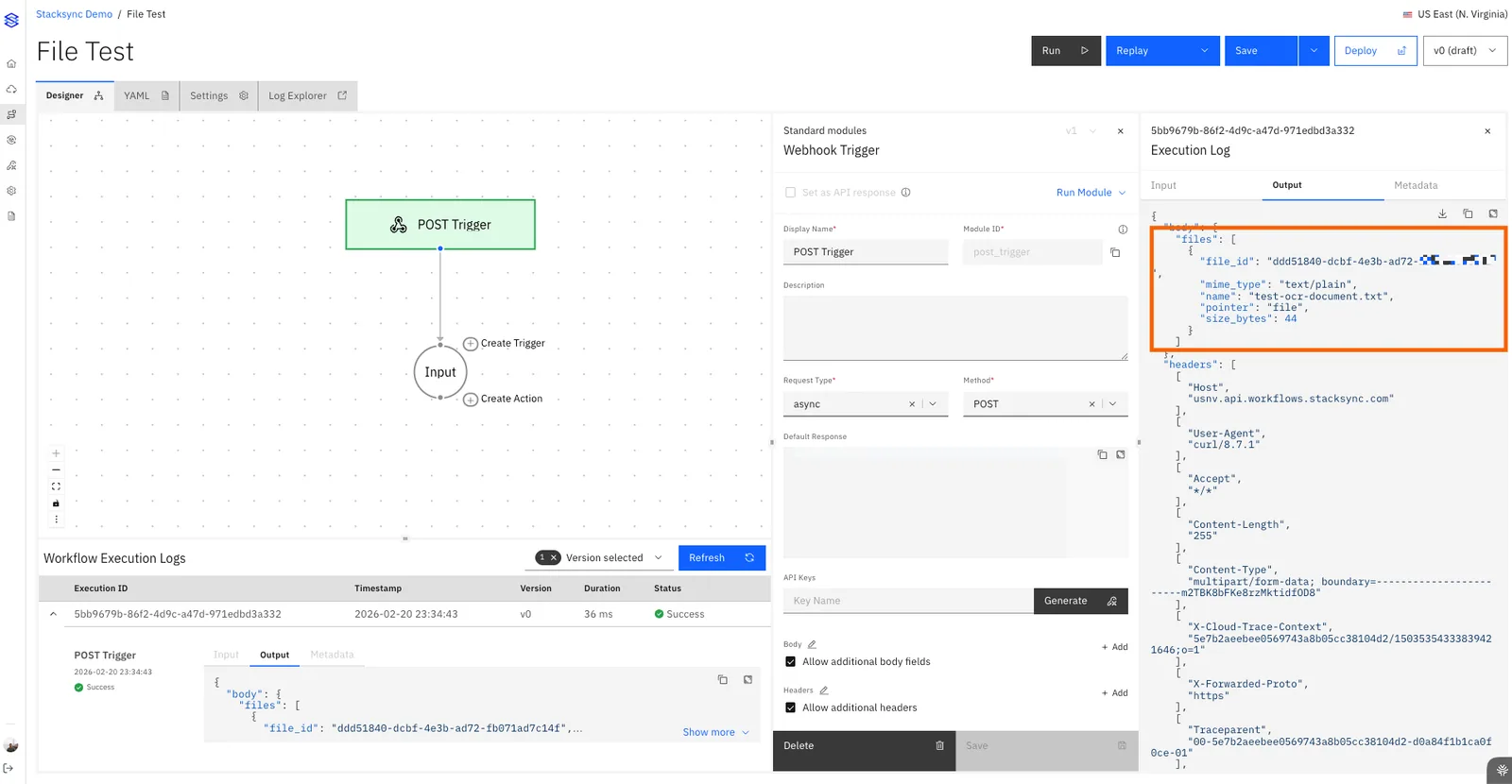

Transformed payload in workflow execution Trigger Output:

{
  "body": {
    "files": [
      {
        "file_id": "72ef30a9-ea74-41b2-96da-a0643c6d5d4c",
        "name": "invoice.pdf",
        "mime_type": "application/pdf",
        "pointer": "file"
      }
    ]
  }
}

Format 2: JSON with base64 fileCopy Anchor Link

HTTPS Request:

curl --request 'POST' \
  --url 'https://<region>.api.workflows.stacksync.com/workspaces/<workspace_ID>/workflows/<Workflow>:latest_draft/triggers/post_trigger/run' \
  --header 'Content-Type: application/json' \
  --data '{
    "attachments": [
      {
        "file": {
          "name": "invoice.pdf",
          "contentType": "application/pdf",
          "contentBytes": "JVBERi0xLjQKJc..."
        }
      }
    ]
  }'

Transformed payload in workflow execution Trigger Output:

{
  "body": {
    "attachments": [
      {
        "file": {
          "name": "invoice.pdf",
          "contentType": "application/pdf",
          "file_id": "72ef30a9-ea74-41b2-96da-a0643c6d5d4c",
          "pointer": "attachments[0].file"
        }
      }
    ]
  }
}

Supported Usage PatternCopy Anchor Link

1. Send files once through trigger ingestion
2. Use file_id in downstream workflow modules
3. Reuse the same file across multiple workflow steps without re-uploading

If you have any questions or run into any blockers, reach out anytime at hello@stacksync.com and the Stacksync team will be happy to help.

Note: The maximum supported file size is 20MB.
